| Τόπος καταγωγής: | Guangdong, Κίνα |
| Μάρκα: | Goodyear |
| Πιστοποίηση: | ISO/TS16949:2009 |
| Αριθμό μοντέλου: | 3B12-306 |
| Ποσότητα παραγγελίας min: | Διαπραγματεύσιμος |
|---|---|
| Τιμή: | Negotiable |
| Συσκευασία λεπτομέρειες: | ισχυρό κιβώτιο χαρτοκιβωτίων ή ως ανάγκη πελατών |
| Χρόνος παράδοσης: | 2-8 ημέρες εργασίας |
| Όροι πληρωμής: | T/T, Western Union, Paypal ή άλλα |
| Δυνατότητα προσφοράς: | 1000pcs/week |
| Υλικό: | Πιάτο κάλυψης χάλυβα, λαστιχένιοι φυσητήρες | Goodyear: | 3B12-306 |
|---|---|---|---|
| Τρύπα αερίου: | 1/4NPTF | Δόντι βιδών: | 3/8-16UNC |
| Κεντρική απόσταση βιδών: | 157,5 χιλ. | Διάμετρος πιάτων κάλυψης: | 228,6 χιλ. |
| Δυνατότητα πίεσης: | 0.2-0.8 Μ PA | Κτύπημα: | 120~457 χιλ. |
| Καθαρό βάρος: | 7,5 κλ | Μέγεθος συσκευασίας: | 33 X 33 X 22 εκατ. |
| Υψηλό φως: | 3B12-306,Τριπλή άνοιξη αέρα Goodyear συνελίξεων,1/4 NPT Goodyear άνοιξη αέρα |
||

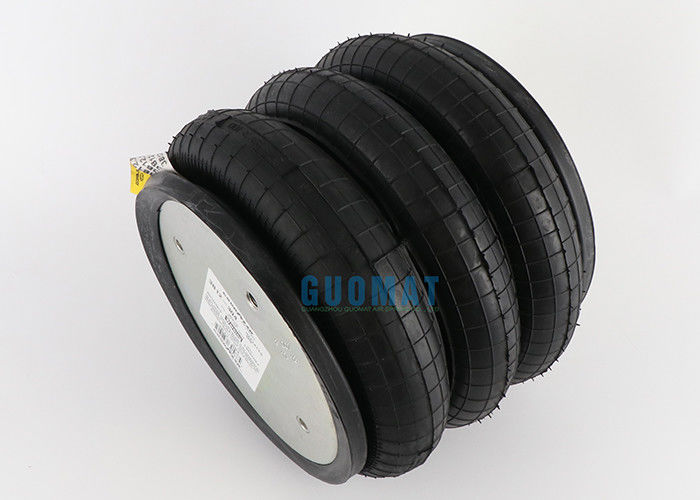

Goodyear Air Springs 3B12-306 Genuine Triple Convolution Cross to Contitech FT 330-29 CI 1/4 NPT
3B12-306 Cross others OEM
Goodyear 3B12-306
Goodyear 3B12 306
Goodyear 3B12306
Goodyear Flexmember 578-93-3-100
Goodyear Flexmember 578 93 3 100
Goodyear Flexmember 578933100
Contitech FT 330-29 503 CI 1/4 NPT
Contitech FT 330 29 503
Contitech FT330-29 503
Firestone: 8006；
Firestone:W01-358-8006
Firestone:W01 358 8006
Firestone:W013588006
Firestone: 8013；
Firestone:W01-358-8013
Firestone:W01 358 8013
Firestone:W013588013
Triangle spring: 4430
Triangle spring: 4503
Kangdi Technology: 64568
Suspension company: 200620
batco: 10-98006
UCF / Impex: AB-3B12-304
T.W. Distribution: AB8006
Dallas Spring: AS8006
Midland / Haldex: CS312304
Euclid / Meritor Aftermarket: E-FS8006
Euclid / Meritor Aftermarket: FS8006
Kangdi Technology: FT330-29503
Leland: SC2132
3B12-306 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 73 mm
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Other kinds of goodyear :
| 57893230000000 | 20094938 | Y | 3B12-300 | 3B12-300 |
| 3B12-300 | 20035817 | N | 3B12-300 Bellows Air Spring | 3B12-300 Bellows Air Spring |
| 57893230100000 | 20094943 | Y | 3B12-301 | 3B12-301 |
| 3B12-301 | 20094947 | N | 3B12-301 Bellows Air Spring | 3B12-301 Bellows Air Spring |
| 57893230300000 | 20094948 | Y | 3B12-303 | 3B12-303 |
| 3B12-303 | 20035819 | N | 3B12-303 Bellows Air Spring | 3B12-303 Bellows Air Spring |
| 57893230400000 | 20054271 | Y | 3B12-304 | 3B12-304 |
| 3B12-304 | 20035820 | N | 3B12-304 Bellows Air Spring | 3B12-304 Bellows Air Spring |
| 57893230400019 | 20094956 | Y | ENIDINE YI-3B12-304 | ENIDINE YI-3B12-304 |
| 57893230500000 | 20094959 | Y | 3B12-305 | 3B12-305 |
| 3B12-305 | 20094960 | N | 3B12-305 Bellows Air Spring | 3B12-305 Bellows Air Spring |
| 57893230500019 | 20094961 | Y | ENIDINE YI-3B12-305 | ENIDINE YI-3B12-305 |
| 57893230800000 | 20094966 | Y | 3B12-308 | 3B12-308 |
| 3B12-308 | 20099073 | N | 3B12-308 | 3B12-308 |
| 57893230800019 | 20094967 | Y | ENIDINE YI-3B12-308 | ENIDINE YI-3B12-308 |
| 57893230900000 | 20054272 | Y | 3B12-309 | 3B12-309 |
| 57893231000000 | 20105514 | Y | 3B12-310 | 3B12-310 |
| 3B12-310 | 20110947 | N | 3B12-310 Bellows Air Spring | 3B12-310 Bellows Air Spring |
| 57893231100000 | 20094969 | Y | 3B12-311 | 3B12-311 |
| 57893231200000 | 20035821 | Y | 3B12-312 | 3B12-312 |
| 3B12-312 | 20094970 | N | 3B12-312 Bellows Air Spring | 3B12-312 Bellows Air Spring |
| 57893231300000 | 20099695 | Y | 3B12-313 | 3B12-313 |
| 3B12-313 | 20307217 | N | 3B12-313 | 3B12-313 |
| 57893231300019 | 20094974 | Y | ENIDINE YI-3B12-313 | ENIDINE YI-3B12-313 |
| 57893231400000 | 20094975 | Y | 3B12-314 | 3B12-314 |
| 57893231500000 | 20099677 | Y | 3B12-315 | 3B12-315 |
| 3B12-315 | 20127021 | N | 3B12-315 Bellows Air Spring | 3B12-315 Bellows Air Spring |
| 57893231600000 | 20094977 | Y | 3B12-316 KIT | 3B12-316 KIT |
| 3B12-316 | 20136005 | N | 3B12-316 KIT | 3B12-316 KIT |
| 57893231700000 | 20094978 | Y | 3B12-317 | 3B12-317 |
| 57893231900000 | 20109195 | Y | 3B12-319 | 3B12-319 |
| 3B12-319 | 20109214 | N | 3B12-319 Bellows Air Spring | 3B12-319 Bellows Air Spring |
| 57893232000019 | 20106776 | Y | ENIDINE YI-3B12-320 | ENIDINE YI-3B12-320 |
| 57893232100000 | 20112849 | Y | 3B12-321 | 3B12-321 |
| 57893232100019 | 20112990 | Y | ENIDINE YI-3B12-321 | ENIDINE YI-3B12-321 |
| 57893232200000 | 20118920 | Y | 3B12-322 | 3B12-322 |
| 3B12-322 | 20118921 | N | 3B12-322 Bellows Air Spring | 3B12-322 Bellows Air Spring |
| 57893232300000 | 20118922 | Y | 3B12-323 | 3B12-323 |
| 3B12-323 | 20118923 | N | 3B12-323 Bellows Air Spring | 3B12-323 Bellows Air Spring |
| 57893232400000 | 20113782 | Y | 3B12-324 | 3B12-324 |
| 3B12-324 | 20137951 | N | 3B12-324 Bellows Air Spring | 3B12-324 Bellows Air Spring |
| 57893232500000 | 20118924 | Y | 3B12-325 | 3B12-325 |
| 3B12-325 | 20118925 | N | 3B12-325 Bellows Air Spring | 3B12-325 Bellows Air Spring |
| 57893232500018 | 20118926 | Y | ENIDINE YI-3B12-325 | ENIDINE YI-3B12-325 |
| 57893232500019 | 20118927 | Y | ENIDINE YI-3B12-325 | ENIDINE YI-3B12-325 |
| 57893232600000 | 20118928 | Y | 3B12-326 | 3B12-326 |
| 3B12-326 | 20118929 | N | 3B12-326 Bellows Air Spring | 3B12-326 Bellows Air Spring |
| 57893232600018 | 20118931 | Y | ENIDINE YI-3B12-326 | ENIDINE YI-3B12-326 |
| 57893232600019 | 20118930 | Y | ENIDINE YI-3B12-326 | ENIDINE YI-3B12-326 |
| 57893232700000 | 20132717 | Y | 3B12-327 | 3B12-327 |
| 3B12-327 | 20132718 | N | 3B12-327 | 3B12-327 |
| 57893232800000 | 20132490 | Y | 3B12-328 | 3B12-328 |
| 3B12-328 | 20132491 | N | 3B12-328 Bellows Air Spring | 3B12-328 Bellows Air Spring |
| 57893232800077 | 20215646 | Y | 3B12-328 WATSON & CHALIN AS0019 | 3B12-328 WATSON & CHALIN AS0019 |
| 57893232900000 | 20132492 | Y | 3B12-329 | 3B12-329 |
| 3B12-329 | 20132493 | N | 3B12-329 Bellows Air Spring | 3B12-329 Bellows Air Spring |
| 57893232900077 | 20215647 | Y | 3B12-329 WATSON & CHALIN AS0048-2G | 3B12-329 WATSON & CHALIN AS0048-2G |
| 57893233000000 | 20130960 | Y | 3B12-330 | 3B12-330 |
| 57893233000004 | 20130961 | Y | 3B12-330 | 3B12-330 |
| 57893233400000 | 20156850 | Y | 3B12-334 | 3B12-334 |
| 3B12-334 | 20156851 | N | 3B12-334 | 3B12-334 |
| 57893233400055 | 20551236 | Y | 3B12-334 FOR MDC | 3B12-334 FOR MDC |
| 57893233500000 | 20141253 | Y | 3B12-335 | 3B12-335 |
| 3B12-335 | 20141254 | N | 3B12-335 Bellows Air Spring | 3B12-335 Bellows Air Spring |
| 57893233600000 | 20141257 | Y | 3B12-336 HENDRICKSON HEBRON 004645 | 3B12-336 HENDRICKSON HEBRON 004645 |
| 57893233600004 | 20141258 | Y | 3B12-336 HENDRICKSON HEBRON 004645 | 3B12-336 HENDRICKSON HEBRON 004645 |
| 57893233700000 | 20156098 | Y | 3B12-337 | 3B12-337 |
| 3B12-337 | 20156099 | N | 3B12-337 Bellows Air Spring | 3B12-337 Bellows Air Spring |
| 57893233800000 | 20156259 | Y | 3B12-338 | 3B12-338 |
| 3B12-338 | 20156300 | N | 3B12-338 Bellows Air Spring | 3B12-338 Bellows Air Spring |
| 57893233900000 | 20160225 | Y | 3B12-339 | 3B12-339 |
| 3B12-339 | 20160226 | N | 3B12-339 | 3B12-339 |
| 57893234000000 | 20192659 | Y | 3B12-340 | 3B12-340 |
| 3B12-340 | 20192770 | N | 3B12-340 | 3B12-340 |
| 3B12-342 | 20407163 | N | 3B12-342 Bellows Air Spring | 3B12-342 Bellows Air Spring |
| 57893234200077 | 20252809 | Y | 3B12-342 WATSON & CHALIN AS0048-3G | 3B12-342 WATSON & CHALIN AS0048-3G |
| 57893234300000 | 20268045 | Y | 3B12-343 | 3B12-343 |
| 3B12-343 | 20268046 | N | 3B12-343 | 3B12-343 |
| 57893234400000 | 20271943 | Y | 3B12-344 | 3B12-344 |
| 57893234500000 | 20272670 | Y | 3B12-345 | 3B12-345 |
| 57893234500004 | 20272671 | Y | 3B12-345 | 3B12-345 |
| 57893234600000 | 20278885 | Y | 3B12-346 | 3B12-346 |
| 57893234600004 | 20278886 | Y | 3B12-346 | 3B12-346 |
| 57893234700000 | 20277829 | Y | 3B12-347 | 3B12-347 |
| 3B12-347 | 20277900 | N | 3B12-347 Bellows Air Spring | 3B12-347 Bellows Air Spring |
| 57893234900000 | 20334042 | Y | 3B12-349 | 3B12-349 |
| 3B14-349 | 20334045 | N | 3B12-349 | 3B12-349 |
