3B12-415 Goodyear Air Springs Suspension 578-93-3-105 FIRESTONE W013588038 For HISTEER 10313
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.5 kilograms
Package size: 33 x 33 x 22 cm
Model: 3B12-415
3B12-415 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : Combination Stud Air Fitting:Stud – 3/4-16
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : Air Fitting – 1/4 NPTF
Screw Center Distance Between Gas Hole and Nut : 157.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 378.5 mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Air spring supplier: Triangle
Reference number: 6429
Competitor/supplier ID: 4554
Suspension supplier: Histeer
Competitor/supplier ID: 10313
Suspension supplier: Silent Drive
Suspension supplier: Silent Drive
Firestone trim: w013588038
3B12-415 Goodyear Cross others OEM
Firestone 8038
Firestone W01-358-8038
Firestone W01 358 8038
Firestone W013588038
Goodyear 3B12-415,
Goodyear 3B12-415,
Goodyear 3B12-415
AUTOMANN
ABSP3B22R-8038
CONTI
66522
FT 330-29 554
FIRESTONE
8038 W013588038
HISTEER
10313

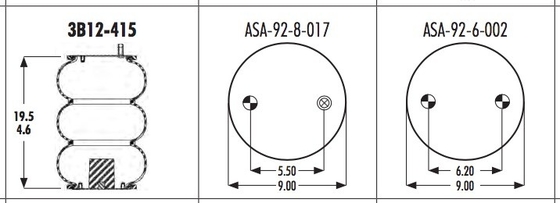

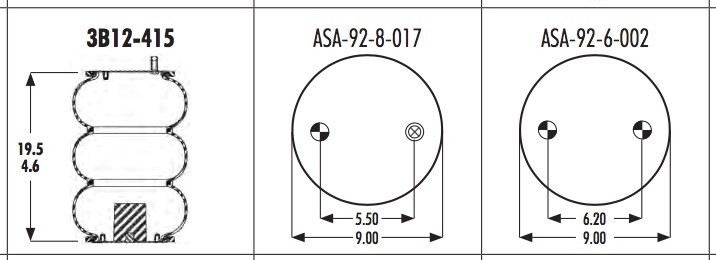

The drawing of GOODYEAR 3B12-415 air spring:
| 3B12-415 |
20355052 |
N |
3B12-415 Bellows Air Spring |
3B12-415 Bellows Air Spring |
| 3B12-416 |
20355053 |
N |
3B12-416 Bellows Air Spring |
3B12-416 Bellows Air Spring |
| 57893241700000 |
20579010 |
Y |
3B14-417 |
3B14-417 |
| 57893241700004 |
20579013 |
Y |
3B14-417 |
3B14-417 |
| 57893245000000 |
20095074 |
Y |
3B14-450 |
3B14-450 |
| 3B14-450 |
20116866 |
N |
3B14-450 Bellows Air Spring |
3B14-450 Bellows Air Spring |
| 57893245000019 |
20095075 |
Y |
ENIDINE YI-3B14-450 |
ENIDINE YI-3B14-450 |
| 893-2451 |
20881107 |
N |
AIR SPRING BELLOWS |
AIR SPRING BELLOWS |
| 3B14-451 |
20095076 |
N |
3B14-451 Bellows Air Spring |
3B14-451 Bellows Air Spring |
| 3B14-452 |
20035828 |
N |
3B14-452 Bellows Air Spring |
3B14-452 Bellows Air Spring |
| 57893245300000 |
20099809 |
Y |
3B14-453 |
3B14-453 |
| 3B14-453 |
20116867 |
N |
3B14-453 Bellows Air Spring |
3B14-453 Bellows Air Spring |
| 57893245300019 |
20099880 |
Y |
ENIDINE YI-3B14-453 |
ENIDINE YI-3B14-453 |
| 57893245400000 |
20116427 |
Y |
3B14-454 |
3B14-454 |
| 3B14-456 |
20254221 |
N |
3B14-456 Bellows Air Spring |
3B14-456 Bellows Air Spring |
| 3B14-457 |
20254222 |
N |
3B14-457 Bellows Air Spring |
3B14-457 Bellows Air Spring |
| 3B14-458 |
20254223 |
N |
3B14-458 |
3B14-458 |
| 3B14-459 |
20254224 |
N |
3B14-459 Bellows Air Spring |
3B14-459 Bellows Air Spring |
| 3B14-460 |
20254226 |
N |
3B14-460 |
3B14-460 |
| 3B14-461 |
20254227 |
N |
3B14-461 |
3B14-461 |
| 3B14-462 |
20254228 |
N |
3B14-462 Bellows Air Spring |
3B14-462 Bellows Air Spring |
| 3B14-463 |
20254229 |
N |
3B14-463 Bellows Air Spring |
3B14-463 Bellows Air Spring |
| 3B14-464 |
20254230 |
N |
3B14-464 Bellows Air Spring |
3B14-464 Bellows Air Spring |
| 57893246500000 |
20395896 |
Y |
Halmek 556-3-3-8335M |
Halmek 556-3-3-8335M |
| 57893246500004 |
20395897 |
Y |
3B14-465 |
3B14-465 |
| 57893246600000 |
20583265 |
Y |
3B14-466 |
3B14-466 |
| 3B14-466 |
20583266 |
Y |
3B14-466 |
3B14-466 |
