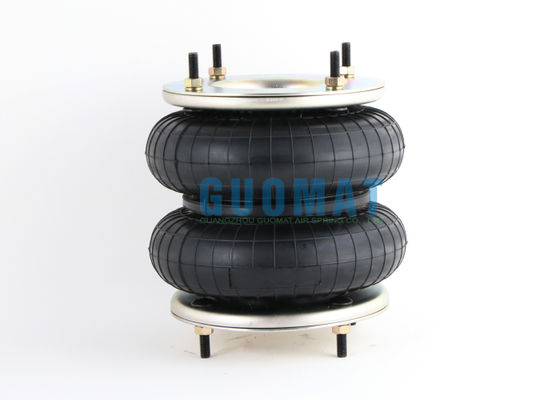

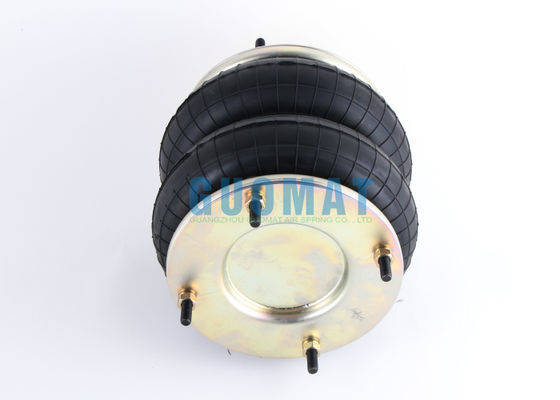

M/31082 NORGREN Universal Air Spring W01-R58-4055 Firestone Air Rubber Bellow
Product Description
| Item |
Value |
| Type |
Air Spring |
| Part NO. |
2B8X2T |
| Warranty |
12 Months |
| Color |
Black |
| Place of Origin |
Guangzhou,China |
| Certification |
ISO/TS16949:2009 |
| Material |
Rubber+Steel |
| Packing |
Neutral Packing |
| MOQ |
1 Pcs |
| Quality |
High-Quality |
| Position |
Industrial Machine |
OEM Number / Cross Reference Number
Continental ContiTech: FD 138-18 DS 66505
Continental ContiTech: FD 138-18 1/2 M10
Continental ContiTech: FD 138-18 DS 1/2 M10
Continental ContiTech: FD 138-18 DS G1/2
Continental ContiTech: FD 138-18 DS G1/2 M10
Continental ContiTech: FD 138-18 DS/FD138-18DS/FD13818DS
Continental ContiTech Bellow: FD138-18/FD138-18/FD13818
Firestone No.:W01-R58-4055/WO1 R58 4055/WO1R584055
Firestone Style: 8"x2/8"x2/8x2
Goodyear:2B8-2150/2B8 2150/2B82150
Goodyear Flex No.:578-92-3-2150/578 923 2150/5789232150
Springride:2B8-2150/2B8 2150/2B82150
Springride Flex No.:578-92-3-2150/578 9232150/5789232150
Dunlop FR: 8"x2 SP1490
Dunlop FR: 8"x2 SP918
Dunlop UK (Pneuride): PNP 30550 0112/PNP305500112
Norgren: M/31082/M 31082/M31082
Parker: 8"x2 9109011
WEFORMA:WBZ-G350/WBZ-G350/WBZG350
Airtech:113060
Airtech Ref:2B-200/2B200/2B200
Prime-Ride New:2B8-2150/2B8 2150/2B82150
Prime-Ride New Flex No: 578-92-3-2150/578 92 3 2150/5789232150
FruehaufM 80A04/M48054
Granning 15803
8X2 Rubber Bellows Technical Data
| Medium |
Compressed air |
| Operating Temperature |
-30 ... 50 °C, -22 ... 122 °F |
| Operating Pressure |
0 ... 8 bar, 0 ... 116 psi |
| Port Size |
G1/2 |
| Nominal Diameter |
8" |
| Number Of Convolutions |
2 |
| Stroke Length |
175 mm |
| Theoretical Force |
17650 N |
| Dimensions - Height |
300 mm |
| Dimensions - Length |
230 mm |
| Dimensions - Width |
230 mm |
About GUOMAT Air Spring
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
