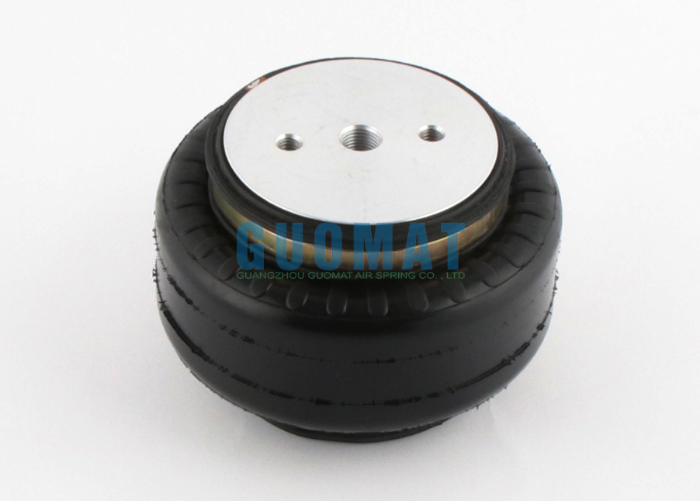

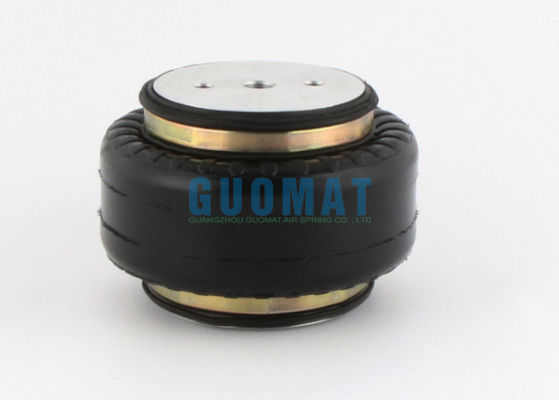

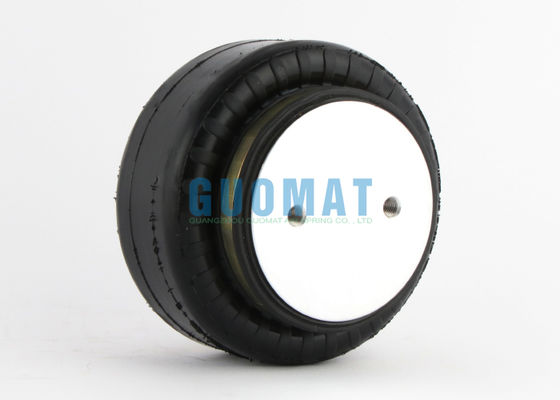

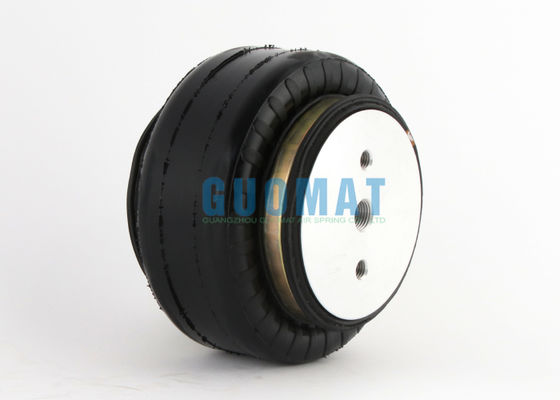

1B5-510 Goodyear Industrial Single Convoluted Air Bags 579-913-501 Cushion Bellows Air Spring

Λεπτομέρειες:

Τόπος καταγωγής:	Guangdong, Κίνα
Μάρκα:	GUOMAT
Πιστοποίηση:	ISO/TS16949:2009
Αριθμό μοντέλου:	1B5510

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	6pcs
Τιμή:	$49.9-59.9/pc
Συσκευασία λεπτομέρειες:	Ισχυρό κουτί χαρτοκιβωτίων ή όπως χρειάζονται οι πελάτες
Χρόνος παράδοσης:	2-8 εργάσιμες ημέρες
Όροι πληρωμής:	T/T, Western Union, L/C
Δυνατότητα προσφοράς:	1000pcs/εβδομάδα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Υλικό:	Λαστιχένια κάλυψη φυσητήρων και χάλυβα	Εγγύηση:	Εγγύηση 1 έτους
Δείγμα:	Διαθέσιμος	Λειτουργία:	Γεμάτος με αέριο
Πακέτο:	Τυπική συσκευασία ή προσαρμοσμένη	Goodyear αριθ.:	1B5-510
Φυσητήρες αριθ.:	579-913-501	Εφαρμογή:	Ηλεκτρονικός εξοπλισμός/Μηχανές μεγάλης ξήρανσης
Επισημαίνω:	Goodyear industrial air spring , single convoluted air bags , air spring cushion bellows

1B5-510 Goodyear Industrial Single Convoluted Air Bags 579-913-501 Cushion Bellows Air Spring

An industrial air spring is a precision industrial component that uses the compressibility of compressed air to provide elastic support, shock absorption, vibration isolation, and height adjustment. Essentially, it is a flexible airbag made of a high-strength rubber/fabric layer, filled with compressed air, utilizing the unique physical properties of air to achieve its function.

Product Specifications

Brand: GUOMAT
Model Number: 1B5510
Convolutions: 1 (Single)
Type: Convoluted Air Spring
Material: Rubber Bellows, Steel Cover and Steel Hoop
Warranty: 1 Year Warranty

Compatible Part Numbers

GOODYEAR Part Number: 1B5-510
GOODYEAR Part Number: 1B 5-510
GOODYEAR Part Number: 1B5 510
GOODYEAR Part Number: 1B5510
GOODYEAR Bellows Number: 579913501
GOODYEAR Bellows Number: 579 913 501
GOODYEAR Bellows Number: 579-913-501
ENIDINE Part Number: YI1B5-510
ENIDINE Part Number: YI 1B5-510

Technical Data

Air Fitting: 1/4" NPT - On Center

End Plate Dia.: 3.4"

Mounting Holes: (2) 3/8"-16

Mtg. Hole Spacing: 1.75"

Max Height: 4.8"

Bumper: No

Application in Industrial Washing Machines

Aspects	Content and Description
Core Application Equipment	Mainly used in large, high-speed industrial washing machines, such as: Isolation-type washer-extractors: particularly large-capacity models (over 100 kg) Tunnel-type continuous washing machines (tunnel washers): suspension and vibration isolation of each washing chamber Large, fully automatic washer-extractors: modern equipment for hotels, hospitals, and laundries
Core Functions	Highly Efficient Vibration Isolation & Damping: Uses the elastic deformation of compressed air within a flexible rubber bellows to absorb and isolate massive unbalanced forces and violent vibrations generated during the spin cycle. Provides a very low natural frequency, achieving vibration isolation efficiency over 95%. Automatic Leveling & Balancing: Via an integrated height valve or electronic control system, it monitors and adjusts the air pressure in each spring in real-time to keep the machine perfectly level. Protection of Equipment & Infrastructure: Greatly reduces shock and vibration on bearings, seals, and structural components, extending the service life of the entire machine. Enhanced Spin Performance: Excellent damping allows the machine to safely reach a higher spin speed (high G-force), extracting more water and reducing residual moisture content.
Key Advantages	Adjustable Stiffness: The supporting stiffness and natural frequency can be adjusted simply by changing the internal air pressure Effective Isolation: Provides superior isolation, especially for low and medium-frequency vibrations Automatic Balancing: Allows for active leveling during operation High Durability: High-quality rubber materials and robust design ensure long service life and reliability
