Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

Λεπτομέρειες:

Τόπος καταγωγής:	Γκουανγκντόνγκ, Κίνα
Μάρκα:	GUOMAT
Πιστοποίηση:	ISO/TS16949:2009
Αριθμό μοντέλου:	G4074

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	6 τεμ
Τιμή:	$49.9/pc-$89.9/pc
Συσκευασία λεπτομέρειες:	Ισχυρό χαρτοκιβώτιο ή όπως χρειάζονται οι πελάτες
Χρόνος παράδοσης:	2-8 εργάσιμες
Όροι πληρωμής:	T/T, Western Union, L/C, Paypal, Διαπραγμάτευση άλλων
Δυνατότητα προσφοράς:	10000 τεμ/εβδομάδα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Τύπος υλικού:	Λάστιχο/χάλυβας	Εγγύηση:	12 μήνες
Πακέτο:	Τυπική συσκευασία ή προσαρμοσμένη	Προέλευση:	Κίνα
Τύπος αγαθών:	ΑΕΡΟΣ ΕΛΕΥΘΕΡΟΣ/ΑΕΡΟΣ/ΑΕΡΟΣ	Σύστημα ανάρτησης:	Σύστημα ανάρτησης
Δοκιμή αποτυχίας:	≥3 εκατομμύρια	Μάρκα:	GUOMAT G4074
Επισημαίνω:	Truck seat air suspension spring , Goodyear air shock absorber , Cab shock absorber with piston

Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

Product Specifications

Brand: GUOMAT

Product Name: Driver Cab Suspension

Model Name: G4074

Compatible Part Numbers

GOODYEAR Number: 1S4-074 / 1S 4-074 / 1S4 074 / 1S4074

GOODYEAR Piston Number: ASC-08-7-134 / ASC 08 7 134 / ASC087134

V-OLVO Number: 66003-3201 / 66003 3201 / 660033201

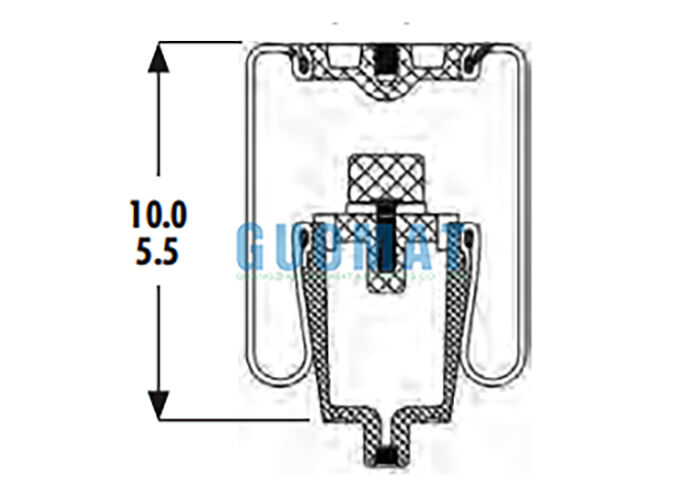

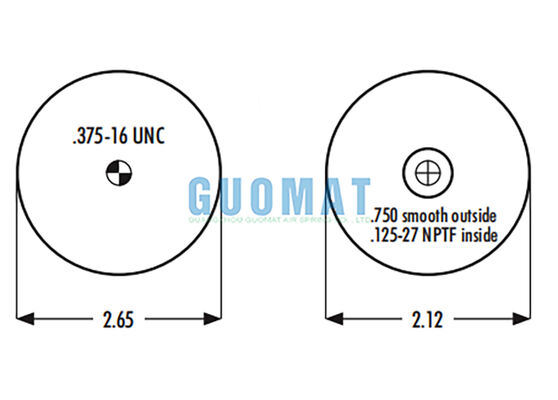

Technical Data: Truck Cab Air Spring

Specification	Measurement
Top cover diameter	72mm
Threaded hole	3/8-16UNC
Outer diameter	103mm
Air Hole	1/8NPTF
Base height	124.5mm
Design height	193mm
Maximum height	370mm
Minimum height	40mm

Applications

Truck Driver Seat Suspension Systems - Reduces road vibration and improves driving comfort during long-distance transportation
Heavy Duty Truck Cab Seats - Supports seat suspension to maintain stability and reduce driver fatigue
Commercial Vehicles - Suitable for buses, construction vehicles, and special transport trucks equipped with air suspension seats
Agricultural and Industrial Machinery Seats - Helps absorb shocks in tractors, harvesters, and other heavy equipment
Off-Road and Construction Equipment - Improves seating comfort in rough working environments

Key Features

Effective Vibration Absorption: The air spring design helps reduce vibration and shocks transmitted from the vehicle chassis to the driver seat
High Strength Rubber Bellows: Manufactured with durable reinforced rubber materials to ensure long service life and reliable performance
Piston Type Structure: The integrated piston design provides stable support and maintains consistent suspension performance
Improved Driver Comfort: By absorbing road impacts, the seat suspension system helps reduce driver fatigue during long hours of operation
Stable Seat Height Control: The air spring maintains proper seat positioning and contributes to better driving ergonomics
Easy Installation and Replacement: Designed for direct installation in compatible seat suspension systems, making replacement quick and convenient
