1S5-038 Goodyear Cab Suspension Air Spring ASC-08-7-194 Piston Rubber Air Bag For Commercial Trucks

Λεπτομέρειες:

Τόπος καταγωγής:	Γκουανγκντόνγκ, Κίνα
Μάρκα:	GUOMAT
Πιστοποίηση:	ISO/TS16949:2009
Αριθμό μοντέλου:	G5038

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	6 τεμ
Τιμή:	$49.9/pc-$89.9/pc
Συσκευασία λεπτομέρειες:	Ισχυρό χαρτοκιβώτιο ή όπως χρειάζονται οι πελάτες
Χρόνος παράδοσης:	2-8 εργάσιμες
Όροι πληρωμής:	T/T, Western Union, L/C, Paypal, Διαπραγμάτευση άλλων
Δυνατότητα προσφοράς:	10000 τεμ/εβδομάδα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Προϊόν:	Άνοιξη αέρα καμπινών	Τύπος υλικού:	Λάστιχο/χάλυβας
Εγγύηση:	12 μήνες	Θέση:	Θέσεις του οδηγού
Σχήμα:	Στυλ μανικιού	Goodyear:	1S5-038
Αριθμός εμβόλου:	ASC-08-7-194	Εφαρμογή:	Για φορτηγό
Επισημαίνω:	Goodyear cab suspension air spring , commercial truck air bag , piston rubber cab shock absorber

1S5-038 Goodyear Cab Suspension Air Spring ASC-08-7-194 Piston Rubber Air Bag For Commercial Trucks

Product Description

Truck cab air springs are designed to isolate vibration and absorb road shocks between the chassis and the cab. By maintaining stable cab height and improving ride comfort, they help protect drivers from fatigue and ensure smoother, safer operation in commercial vehicles.

Product Specifications

Brand: GUOMAT
Model Number: G5038
Application: For Truck Cabin

Cross-Reference Part Numbers

GOODYEAR: 1S5-038, 1S 5-038, 1S5 038, ASC-08-7-194, ASC 08 7 194, ASC087194
FIRESTONE: 7081, W02-358-7081, W02 358 7081, W023587081
LINK CAB & SEAT SPRING: 1101-0043

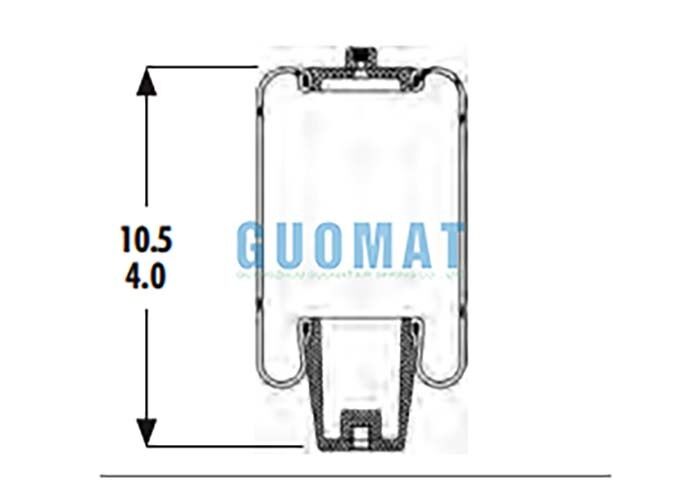

Technical Specifications

Specification	Value
Top Plate Hole/Stud Quantity	1
Top Plate Diameter	2.65
Top Plate C to C Diameter	N/A
Bottom Plate Hole/Stud Quantity	1
Bottom Plate Diameter	2.12
Bottom Plate Alignment	Parallel
Bumper	No
Minimum Height	4
Maximum Height	10.5

When to Replace Truck Cab Air Springs

Cab air springs are designed to provide long-term vibration isolation and load support, but like all rubber and pneumatic components, they gradually wear out over time. Operating a truck with a damaged or leaking air spring can negatively affect ride comfort, suspension alignment, and driver safety.

Common Replacement Indicators

Visible cracks or dry rot on the rubber sleeve caused by continuous exposure to road debris, temperature changes, and aging
Air leakage or inability to maintain pressure - if the cab slowly sinks when parked or requires frequent air refilling
Increased cab vibration or harsh ride quality - worn air springs lose damping ability, transmitting more road shock to the cab
Uneven cab height or leaning cab position - affecting driver visibility and suspension geometry

Risks of Using Damaged Air Springs

Continuing to use worn or leaking air springs can lead to:
