GUOMAT 1B200-10 Air Spring Replacement W01M586374 Firestone Style 115 Industrial Air Bellows

Λεπτομέρειες:

Τόπος καταγωγής:	ΓΚΟΥΑΝΚΤΖΟΥ, ΚΙΝΑ
Μάρκα:	GUOMAT
Πιστοποίηση:	ISO/TS16949:2009
Αριθμό μοντέλου:	1B200-10

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	5 τεμ
Τιμή:	USD59.9-69.9/PC
Συσκευασία λεπτομέρειες:	Ισχυρό χαρτοκιβώτιο ή ως απαίτηση πελατών
Χρόνος παράδοσης:	3-7 εργάσιμες
Όροι πληρωμής:	L/C, T/T, Western Union ή άλλα
Δυνατότητα προσφοράς:	1000 τμχ/εβδομάδα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Είδος:	Ελατήριο αέρα από καουτσούκ	Ποιότητα:	100% Δοκιμασμένο
Πακέτο μεταφοράς:	Ουδέτερη συσκευασία	Κωδικός Hs:	8708809000
τύπος:	Γεμάτο με αέριο	Firestone:	W01-M58-6374
Χρώμα:	Μαύρος	Contitech:	FS 200-10
Επισημαίνω:	Firestone style air spring replacement , industrial air bellows 115 , GUOMAT 1B200-10 air bellow

GUOMAT 1B200-10 Air Spring Replacement

Complete replacement for Firestone Style 115 Industrial Air Bellows W01M586374

Product Overview

Type	Rubber Air Spring Bag
Brand	GUOMAT
Model No.	1B6374
Warranty	1 Year
Material	High Quality Rubber
HS Code	8708809000
Convolutions	Single Convoluted Type

Technical Specifications

1B200-10 Dimensions

Natural Outer Diameter	220mm
Air Fitting	G3/4
Threaded Hole	M8X1.25
Center Distance Between Threaded Holes	89mm
Cover Plate Diameter	160mm
Maximum Height	180mm
Minimum Height	55mm
Convolutions	1
Weight	2.6KG

Cross-Reference Numbers

Firestone OEM Numbers

Firestone W01M586374
Firestone W01 M58 6374
Firestone W01-M58-6374
Firestone W01M586375
Firestone W01 M58 6375
Firestone W01-M58-6375
Firestone W01M586376
Firestone W01 M58 6376
Firestone W01-M58-6376
Firestone W01M586977
Firestone W01 M58 6977
Firestone W01-M58-6977
Firestone W013580118
Firestone W01 358 0118
Firestone W01-358-0118

Other Manufacturer Equivalents

Contitech FS200-10
Contitech FS 200-10
Phoenix SP1B12
Phoenix SP 1B12
Phoenix SP 1B 12
Dunlop(FR) 9''1/4X1 S09101
B-osch 822419004
Festo EB-250-85
Norgren PM/31091

Performance Data

Firestone W01-M58-6374 Technical Specifications

AIRSTROKE ACTUATOR
Maximum Diameter @ 7 Bar (mm)	257
Maximum Height (mm)	51
Maximum Stroke (mm)	79
Minimum Usable Height (mm)	130
Force in kN @ 5 Bar at Stroke of 25 mm	14.3
Force in kN @ 5 Bar at Stroke of 50% of Max Stroke	13.2
Force in kN @ 5 Bar at Stroke of Maximum Stroke	6.5
Style Cross-Ref High Strength Style Number	124
Material	2-Ply Standard Cord
END CLOSURE DETAILS
Bead plate Type	3
Dim. A (Blind Nut Centers) (mm)	89
Dim. B (mm)	38
AIRMOUNT ISOLATOR
Design Height (mm)	114
Load (at Design Height) at: 3 Bar (kN)	5.7
Load (at Design Height) at: 5 Bar (kN)	9.4
Load (at Design Height) at: 7 Bar (kN)	13.3
Natural Frequency (@5 Bar)(fn(Hz)	2.7
% of Isolation at Forced Frequency 7 Hz	82.6
% of Isolation at Forced Frequency 13 Hz	96.2
% of Isolation at Forced Frequency 25 Hz	98.9

Product Features

GUOMAT 1B200-10 is a direct replacement for Firestone W01-M58-6374 air springs. Our comprehensive training and extensive product knowledge ensure you receive complete support for all your air spring requirements.

Manufactured to exceed global standards, GUOMAT air springs are meticulously designed for superior performance and reliability. Our integration of automotive technology into heavy-duty applications delivers the excellence expected from an industry leader.

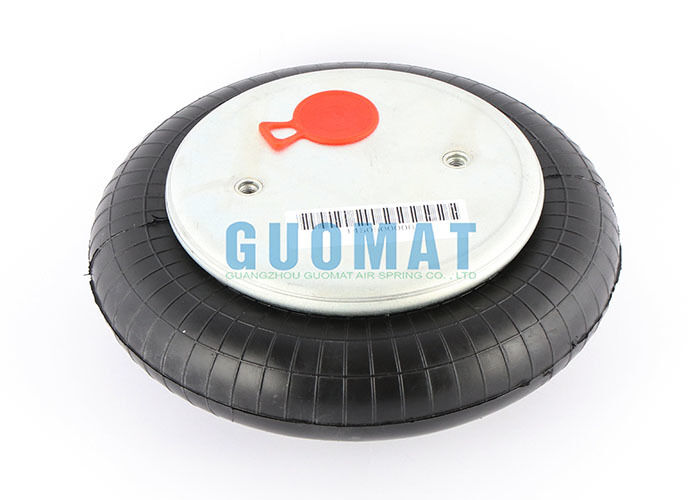

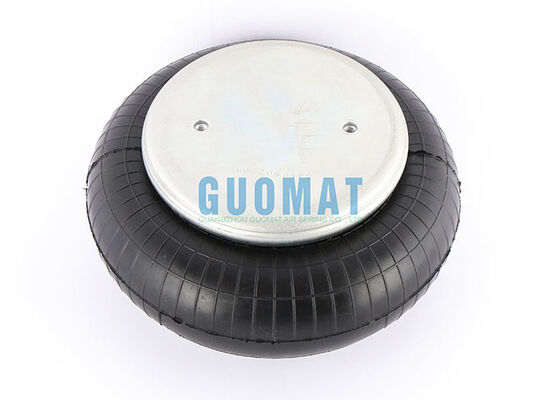

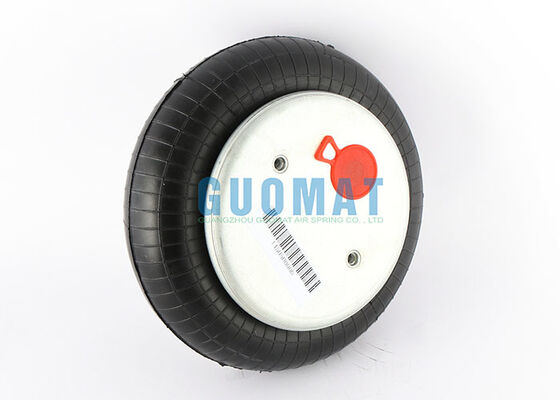

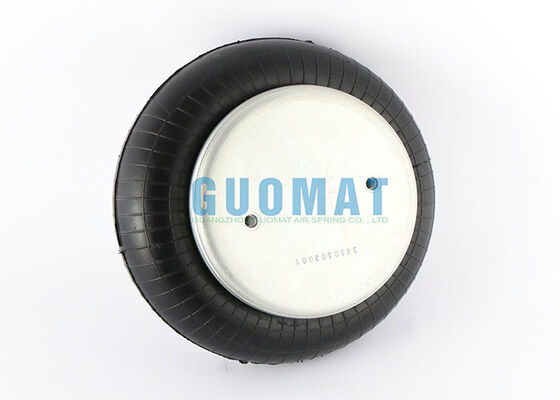

Product Image
