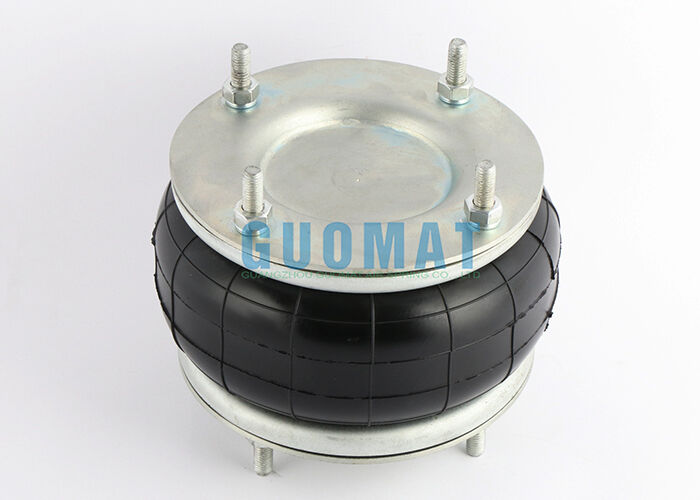

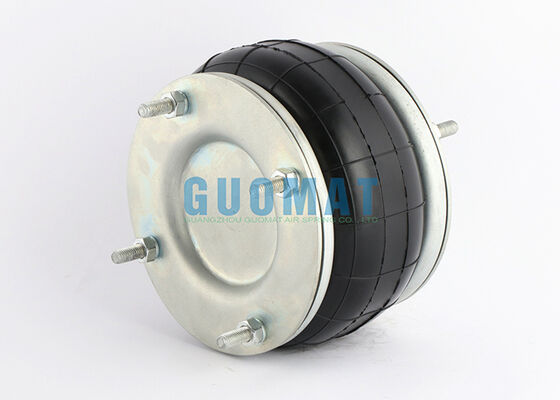

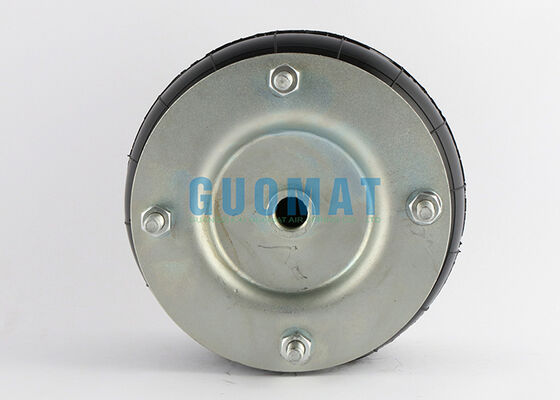

W01R584057 Firestone Rubber Bellows 10''X1 Single Convoluted Air Spring For Plastic Machinery

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	GUOMAT
Πιστοποίηση:	ISO/TS16949:2009
Αριθμό μοντέλου:	1Β10Χ1Τ

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	6 τεμ
Τιμή:	US$119.9-159.9/PC
Συσκευασία λεπτομέρειες:	Ισχυρό χαρτοκιβώτιο ή όπως χρειάζονται οι πελάτες
Χρόνος παράδοσης:	3-7 εργάσιμες
Όροι πληρωμής:	L/C,D/A,D/P,T/T,Western Union
Δυνατότητα προσφοράς:	1000 τμχ/εβδομάδα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Top Plate Dia:	210 mm	Άλλο Όνομα:	Industry Air Spring Isolator
Μέγεθος συσκευασίας:	333322CM	Ανοιξιάτικο Υλικό:	Καουτσούκ και χάλυβας
Fuction:	Μειώστε το σοκ	Πακέτο μεταφοράς:	Ισχυρά χαρτοκιβώτια
Κωδικός HS:	8708809000	Όνομα αντικειμένου:	Στριμμένο ελατήριο αέρα
Επισημαίνω:	Firestone rubber bellows air spring , 10x1 single convoluted air spring , plastic machinery industrial air spring

W01R584057 Firestone Rubber Bellows 10"X1 Single Convoluted Air Spring For Plastic Machinery

Product Specifications

Type	Single Convoluted Air Spring
Brand	GUOMAT
Model No.	1B10X1T
Material	Rubber Steel
Warranty	1 Year
Package	Carton
Color	Black

Replacement Part Numbers

Continental ContiTech: FS 210-10 DS 67404
Continental ContiTech: FS 210-10 1/2 M10
Continental ContiTech: FS 210-10 DS 1/2 M10
Continental ContiTech: FS 210-10 DS G1/2
Continental ContiTech: FS 210-10 DS G1/2 M10
Continental ContiTech: FS 210-10 DS /FS210-10DS /FS21010DS
Continental ContiTech Bellow: FS 210-10 / FS210-10 / FS21010
Firestone No.: W01-R58-4057/W01 R58 4057/W01R584057
Firestone Style: 10" x1/10"x1/10x1
Goodyear: 1B10-2350/1B10 2350/1B102350
Goodyear Flex No.: 578-91-3-2350/578 91 3 2350/5789132350
Dunlop FR: 10"x1 SP2523
Dunlop UK (Pneuride): A11127 00 07/A111270007
Norgren: M/31101/M 31101/M31101
Nominal 0 (inch) x convolutions: 10" x1/10"x1/10x1

Technical Specifications

Cover plate diameter	210mm
Air Hole	G1/2
Threaded hole	M10
Number of threaded holes	4
Center distance between threaded holes	181mm
Maximum outer diameter	270mm
Minimum height	50mm
Maximum height	150mm

Pressure and Height Performance Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	VoI.V(cm³)
50	1354	1811	2263	2707	3170	3618	479
70	1160	1554	1944	2326	2719	3109	1645
100	887	1189	1480	1778	2080	2378	2930
130	595	793	991	1189	1393	1593	3880
150	372	495	634	758	883	1015	4442

Warranty and After-Sales Support

Every 1B10X1T air spring is covered by a comprehensive 12-month warranty against manufacturing defects under normal operating conditions. GUOMAT provides professional technical support and reliable service for all our industrial air spring products.

One-Year Product Warranty - Free replacement or technical solutions for confirmed manufacturing defects
Professional Technical Consultation - Engineering support for model selection, installation, and application optimization
Cross-Reference Support - Accurate interchange information for major brands including ContiTech, Firestone, and Goodyear
Installation Assistance - Guidance on mounting, operating pressure, maintenance, and troubleshooting
Rapid Response Service - Customer inquiries answered within 24 business hours
Quality Traceability - Complete production batch tracking from raw materials to finished products
Spare Parts & Repeat Orders - Consistent product quality and reliable supply chain
Global Export Experience - Professional packaging for international transportation
